Feature

Product Description

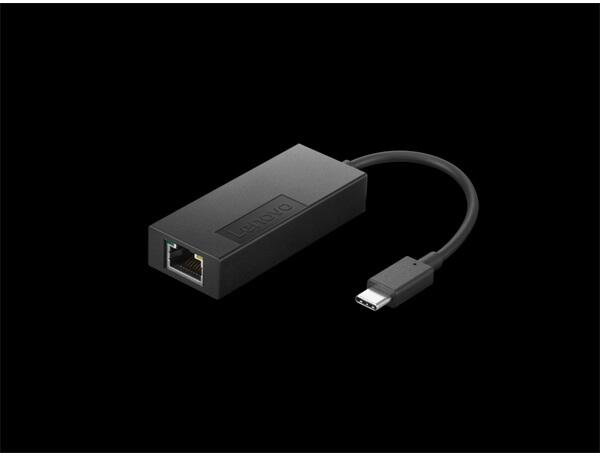

With 2.5Gbps-capable switches/routers, the Lenovo USB-C to 2.5G Ethernet Adapter is quick and easy way to connect your USB-C enabled notebook to Ethernet connections. It’s ideal for imaging of systems or transferring large files quickly.

Top Features

Full-size RJ45 connector
LEDs on RJ45 connector to indicate activity and link status.
Support PXE boot, Wake-On-LAN, MAC pass through if host notebook supports
Faster than Gigabit: For smoother video conferencing and seamless streaming using 2.50Gbps switches or routers, this adapter doubles the performance of a traditional Gigabit Ethernet adapter. Ethernet signals up to 2.5 Gigabit are designed to work over Cat 5e cabling. Simply pair your USB Ethernet Adapter with 2.5Gbps-capable switches and routers to get upgraded networking without changing your cables.

Tech Specs

Product Weight
25g (0.88oz)

Packed Dimensions (L x D x H)
280x100x15mm (11.02x3.94x0.6in)

JAN
4571591675978

EAN
0195892042594

UPC
195892042594

Warranty Period
1 Year

Other Electrical Specifications
1 x USB3.0 C-type connector input supporting
1 x 2.5 Giga bit Full size RJ45 connector

Maximum Relative Humidity (%)
80%

Minimum Relative Humidity (%)
20%

Maximum Operating Temperature
35 degees Celsius

Minimum Operating Temperature
5 degees Celsius

Packed Weight
28.515g (1.01oz)

Package Type
Package Bag

Shipment Group
1 x Lenovo USB-C to 2.5G Ethernet Adapter
1 x UG Poster
1 x Warranty Poster

Height
14mm (0.551in)

Depth
27.78mm (1.09in)

Length
200mm (7.87in)

Driver Needed
Yes

Hardware Requirements
5V/3A USB-C port

Connectivity
USB-C

Agency Approvals
CB
CE
FCC
ICE
RCM
VCCI
KCC
BSMI
EAC
  Ukraine DoC

Color
Black

Max Power Consumption
7.5W

Hot Plug
Yes

Over Voltage Protection
Yes

Support PXE Boot
Yes

Ethernet
2.5Gigabit Ethernet

Supported OS
Windows 10

Brand
Lenovo

Compatibility

Operating System

OS Independent

Compatible Machines

Description
ID
Footnote

IdeaPad Flex 5 series-IdeaPad 5 2-in-1 14IRU9
83DT


IdeaPad Flex 5 series-IdeaPad 5 2-in-1 16IRU9
83DU


IdeaPad S100 Series-IdeaPad 1 14AMN7
82VF


IdeaPad S100 Series-IdeaPad 1 15AMN7
82VG


82X5


IdeaPad S300 Series-IdeaPad Slim 3 14IAH8
83EQ


IdeaPad S300 Series-IdeaPad Slim 3 14IRU9
83E5


IdeaPad S300 Series-IdeaPad Slim 3 15IAH8
83ER


IdeaPad S300 Series-IdeaPad Slim 3 15IRH8
83EM


IdeaPad S300 Series-IdeaPad Slim 3 15IRU9
83E6


IdeaPad S300 Series-IdeaPad Slim 3 16IAH8
83ES


IdeaPad S300 Series-IdeaPad Slim 3 16IRH8
83EN


IdeaPad S300 Series-IdeaPad Slim 3 16IRU9
83E7


IdeaPad S300 Series-NEC-LAVIE-N15-IP3-15IRU8
83BD


IdeaPad S500 Series-IdeaPad Pro 5 16IMH9
83D4


IdeaPad S500 Series-IdeaPad Slim 5 14ABR8
82XE


IdeaPad S500 Series-IdeaPad Slim 5 14AHP9
83DB


IdeaPad S500 Series-IdeaPad Slim 5 14IMH9
83DA


IdeaPad S500 Series-IdeaPad Slim 5 16ABR8
82XG


IdeaPad S500 Series-IdeaPad Slim 5 16AHP9
83DD


IdeaPad S500 Series-IdeaPad Slim 5 16IMH9
83DC


LOQ 3 Series-LOQ 15AHP9
83DX


LOQ 3 Series-LOQ 15IAX9
83GS


LOQ 3 Series-LOQ 15IAX9I
83FQ


Legion Y500 Series-Legion 5 16IRX9
83DG


Legion Y900 Series-Legion 9 16IRX9
83G0


Lenovo 100e Series-100e Intel G4
83G8


83G9


Lenovo K14 Series-K14 G2
21G0


21G1


Lenovo S700 Series-Lenovo Slim 7 14IMH9
83D8


Lenovo S700 Series-Lenovo Slim 7 14IRP8
83A4


Lenovo S700 Series-Lenovo Slim Pro 7 14APH8
83AW


ThinkBook Plus Series-ThinkBook Plus G2 ITG
20WH
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkBook Plus Series-ThinkBook Plus G4 IRU
21JJ


ThinkBook Series (Perfomance)-ThinkBook 14p G2 ACH
20YN
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkBook Series (Perfomance)-ThinkBook 16p G4 IRH
21J8


ThinkBook Slim Series-ThinkBook 13s G5 IRP
21JA


ThinkBook X series-ThinkBook 13x G4 IMH
21KR


ThinkBook Yoga Series-ThinkBook 14s Yoga G3 IRU
21JG


ThinkCentre M Traditional Desktop Series-NEC Canopus-IR-LV
12H5
PXE boot supported. MAC address pass through supported

ThinkCentre neo Series-ThinkCentre neo 50t Gen 4
12JD


ThinkPad E14 Series-E14 AMD G6
21M3
PXE boot supported. MAC address pass through supported

21M4
PXE boot supported. MAC address pass through supported

ThinkPad E14 Series-E14 G5
21JK
PXE boot supported. MAC address pass through supported

21JL
PXE boot supported. MAC address pass through supported

ThinkPad E14 Series-E14 G6
21M7
PXE boot supported. MAC address pass through supported

21M8
PXE boot supported. MAC address pass through supported

ThinkPad E16 series-E16 AMD G2
21M5
PXE boot supported. MAC address pass through supported

21M6
PXE boot supported. MAC address pass through supported

ThinkPad E16 series-E16 G1
21JN
PXE boot supported. MAC address pass through supported

21JQ
PXE boot supported. MAC address pass through supported

ThinkPad E16 series-E16 G2
21MA
PXE boot supported. MAC address pass through supported

21MB
PXE boot supported. MAC address pass through supported

ThinkPad L13 Series-L13 2-in-1 G5
21LM
PXE boot supported. MAC address pass through supported

21LN
PXE boot supported. MAC address pass through supported

ThinkPad L13 Series-L13 Clam AMD G4
21FN
P1. PXE boot supported

21FQ
P1. PXE boot supported

ThinkPad L13 Series-L13 Clam G5
21LB
PXE boot supported. MAC address pass through supported

21LC
PXE boot supported. MAC address pass through supported

ThinkPad L13 Series-L13 Yoga AMD G4
21FR
P1. PXE boot supported

21FS
P1. PXE boot supported

ThinkPad L14 Series-L14 AMD G4
21H5


21H6


ThinkPad L14 Series-L14 AMD G5
21L5
PXE boot supported. MAC address pass through supported

21L6
PXE boot supported. MAC address pass through supported

ThinkPad L14 Series-L14 G4
21H1


21H2


ThinkPad L14 Series-L14 G5
21L1


21L2


ThinkPad L15 Series-L15 AMD G4
21H7
PXE boot supported. MAC address pass through supported

21H8
PXE boot supported. MAC address pass through supported

ThinkPad L15 Series-L15 G4
21H3
PXE boot supported. MAC address pass through supported

21H4
PXE boot supported. MAC address pass through supported

ThinkPad L16 Series-L16 AMD G1
21L7
PXE boot supported. MAC address pass through supported

21L8
PXE boot supported. MAC address pass through supported

ThinkPad P1 Series-P1 G5
21DC
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

21DD
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad P1 Series-P1 G6
21FV
PXE boot supported. MAC address pass through supported

21FW
PXE boot supported. MAC address pass through supported

ThinkPad P14 Series-P14s AMD G4
21K5
PXE boot supported. MAC address pass through supported

21K6
PXE boot supported. MAC address pass through supported

ThinkPad P14 Series-P14s G4
21HF
PXE boot supported. MAC address pass through supported

21HG
PXE boot supported. MAC address pass through supported

ThinkPad P15 Series-P15 G2
20YQ
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20YR
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad P16 Series-P16 G1
21D6
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

21D7
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad P16 Series-P16 G2
21FA
PXE boot supported. MAC address pass through supported

21FB
PXE boot supported. MAC address pass through supported

ThinkPad P16 Series-P16s AMD G2
21K9
PXE boot supported. MAC address pass through supported

21KA
PXE boot supported. MAC address pass through supported

ThinkPad P16 Series-P16s G2
21HK
PXE boot supported. MAC address pass through supported

21HL
PXE boot supported. MAC address pass through supported

ThinkPad P16 Series-P16v AMD G1
21FE
Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1

21FF
Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1

ThinkPad P16 Series-P16v G1
21FC
PXE boot supported. MAC address pass through supported

21FD
PXE boot supported. MAC address pass through supported

ThinkPad P17 Series-P17 G2
20YU
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20YV
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad T14 Series-T14 AMD G1
20UD
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20UE
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad T14 Series-T14 AMD G4
21K3
PXE boot supported. MAC address pass through supported

21K4
PXE boot supported. MAC address pass through supported

ThinkPad T14 Series-T14 G4
21HD
PXE boot supported. MAC address pass through supported

21HE
PXE boot supported. MAC address pass through supported

ThinkPad T14 Series-T14s AMD G4
21F8
PXE boot supported. MAC address pass through supported

21F9
PXE boot supported. MAC address pass through supported

ThinkPad T14 Series-T14s G4
21F6
PXE boot supported. MAC address pass through supported

21F7
PXE boot supported. MAC address pass through supported

ThinkPad T14 Series-T14s G5
21LS
PXE boot supported. MAC address pass through supported

21LT
PXE boot supported. MAC address pass through supported

ThinkPad T14 Series-ThinkPad T14
20S0
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20S1
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20S2
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20S3
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad T16 Series-T16 AMD G2
21K7
PXE boot supported. MAC address pass through supported

21K8
PXE boot supported. MAC address pass through supported

ThinkPad T16 Series-T16 G2
21HH
PXE boot supported. MAC address pass through supported

21HJ
PXE boot supported. MAC address pass through supported

ThinkPad T16 Series-T16 G3
21MN
PXE boot supported. MAC address pass through supported

21MQ
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Carbon 9th Generation
20XW
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

20XX
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

ThinkPad X1 series-X1 Carbon G11
21HM
PXE boot supported. MAC address pass through supported

21HN
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Carbon G12
21KC
PXE boot supported. MAC address pass through supported

21KD
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Extreme G5
21DE
PXE boot supported. MAC address pass through supported

21DF
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Fold 16 G1
21ES
PXE boot supported. MAC address pass through supported

21ET
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Nano G3
21K1
PXE boot supported. MAC address pass through supported

21K2
PXE boot supported. MAC address pass through supported

ThinkPad X1 series-X1 Yoga G8
21HQ
PXE boot supported. MAC address pass through supported

21HR
PXE boot supported. MAC address pass through supported

ThinkPad X12 Series-X12 Detachable G2
21LK
P1. PXE boot supported

21LL
P1. PXE boot supported

ThinkPad X13 series-X13 2-in-1 G5
21LW


21LX


ThinkPad X13 series-X13 AMD G4
21J3
PXE boot supported. MAC address pass through supported

21J4
PXE boot supported. MAC address pass through supported

ThinkPad X13 series-X13 G4
21EX
PXE boot supported. MAC address pass through supported

21EY
PXE boot supported. MAC address pass through supported

ThinkPad X13 series-X13 G5
21LU
PXE boot supported. MAC address pass through supported

21LV
PXE boot supported. MAC address pass through supported

ThinkPad X13 series-X13 Yoga G4
21F2
PXE boot supported. MAC address pass through supported

21F3
PXE boot supported. MAC address pass through supported

ThinkPad Z13 Series-Z13 AMD G1
21D2


21D3


ThinkPad Z13 Series-Z13 AMD G2
21JV
PXE boot supported. MAC address pass through supported

21JW
PXE boot supported. MAC address pass through supported

ThinkPad Z16 Series-Z16 AMD G1
21D4


21D5


ThinkPad Z16 Series-Z16 AMD G2
21JX
PXE boot supported. MAC address pass through supported

21JY
PXE boot supported. MAC address pass through supported

Thinkbook Series-ThinkBook 14 3rd Generation - ACL
21A2
357. PxE boot, Mac address pass through and WOL feature enablement will rely on support of host BIOS

Thinkbook Series-ThinkBook 14 G5 IRL
21JC


Thinkbook Series-ThinkBook 14 G6 ABP
21KJ


Thinkbook Series-ThinkBook 14 G6 IRL
21KG


Thinkbook Series-ThinkBook 15 G5 IRL
21JD


Thinkbook Series-ThinkBook 16 G6 IRL
21KH


V Series-Lenovo S14 G3 IAP
82TW


V Series-Lenovo V14 G4 ABP
82YX


V Series-Lenovo V14 G4 AMN
82YT


V Series-Lenovo V14 G4 AMN(Brazil)
83GE


V Series-Lenovo V14 G4 IAH
83FR


V Series-Lenovo V14 G4 IAN
82YV


V Series-Lenovo V14 G4 IRU
83A0


V Series-Lenovo V14 G4 IRU(Brazil)
83GK


V Series-Lenovo V15 G4 ABP
82YY


83CR


V Series-Lenovo V15 G4 AMN
82YU


83CQ


V Series-Lenovo V15 G4 IAH
83FS


83G2


V Series-Lenovo V15 G4 IAH(Brazil)
83GL


V Series-Lenovo V15 G4 IAN
82YW


V Series-Lenovo V15 G4 IRU
83A1


83CC


Y700 Series-Legion 7 16IRX9
83FD


Yoga S600 Series-Yoga Slim 6 14APU8
82X3


Yoga S600 Series-Yoga Slim 6 14IAP8
82WU


83C7


Yoga S600 Series-Yoga Slim 6 14IRH8
83E0


Yoga S600 Series-Yoga Slim 6 14IRP8
82WV


Yoga S700 Series-Yoga Pro 7 14APH8
82Y8


Yoga S700 Series-Yoga Slim 7 14APU8
83AA


Yoga S700 Series-Yoga Slim 7 14IMH9
83CV



Galéria
